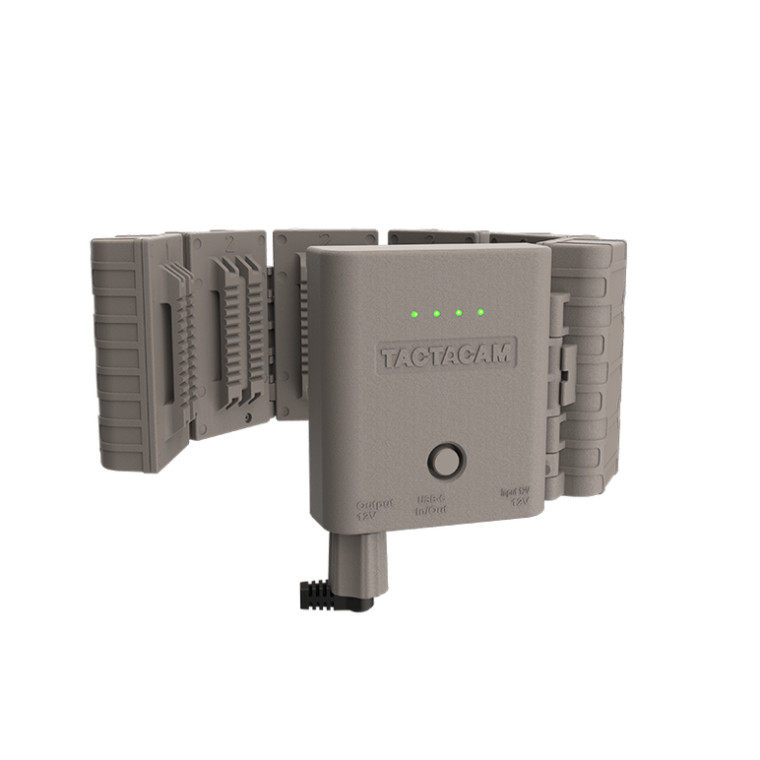

Reveal External 14,700 mAh Battery Powered Belt by Tactacam

The Reveal External 14,700 mAh Battery Powered Belt by Tactacam is a high-capacity external power solution designed to keep compatible REVEAL trail cameras running longer in the field. With 14,700 mAh of lithium-ion battery capacity, the Battery Belt provides up to three times the capacity of Tactacam's standard lithium cartridge, helping reduce the need for frequent battery changes during extended camera deployments.

The flexible belt-style design wraps securely around a tree, fence post, or other suitable mounting location using the included strap, allowing for tool-free installation. It supports USB-C fast charging as well as compatible REVEAL solar panels, making it a versatile power option for remote hunting and wildlife-monitoring setups.

Key Features

• 14,700 mAh high-capacity lithium-ion battery
• Provides up to three times the capacity of a standard REVEAL lithium cartridge
• Flexible belt design wraps around trees and other mounting locations
• Includes tree mounting strap
• Tool-free installation
• USB-C fast charging with up to 30W input
• USB-C output up to 20W
• Compatible with REVEAL V2 and Folding Solar Panels
• Can be used with the Tactacam Lithium Cartridge
• LED battery level indicators
• IPX66 waterproof rating
• Designed for extended trail camera deployments
• Helps reduce the need for frequent battery replacement

Specifications

• Brand: Tactacam
• Product: REVEAL Battery Belt
• Model: RV-BB-V1
• Battery Capacity: 7.2V / 14,700 mAh
• Battery Type: Lithium-Ion
• Dimensions: 18.5" L x 3.9" H x 1.4" D
• Product Weight: 2.7 lb.
• USB-C Input: Up to 30W
• USB-C Output: Up to 20W
• DC Input: 9–12V, 1.5A maximum
• DC Output: 12V / 2A
• Waterproof Rating: IPX66
• Operating Temperature: -20°C to 60°C
• Mounting: Tree strap
• Warranty: 1-year limited warranty

Compatibility

The REVEAL Battery Belt is designed for compatible Tactacam REVEAL trail cameras and works with the REVEAL V2 Solar Panel, REVEAL Folding Solar Panel, Tactacam Lithium Cartridge, and internal AA battery tray.

Benefits

• Extends trail camera operation between battery changes
• High-capacity design is suited for long-term field deployments
• Flexible mounting system works well on trees and other irregular surfaces
• USB-C fast charging provides a convenient way to recharge the battery
• Solar compatibility can help provide ongoing power in the field
• LED indicators make it easy to check remaining battery power
• IPX66 protection helps the battery withstand demanding outdoor conditions
• Can supplement the camera's internal or lithium battery system for additional runtime

Ideal Use

The Tactacam REVEAL Battery Belt is ideal for hunters, wildlife researchers, land managers, and outdoor enthusiasts operating cellular trail cameras in remote locations. It is particularly useful for long-term deer monitoring, hunting property surveillance, wildlife observation, and other applications where minimizing camera maintenance is important.

Charging Instructions

The Battery Belt can be charged using the included USB-C cable and a compatible charging block supporting up to 30W. It can also be charged using a compatible REVEAL V2 or Folding Solar Panel. Tactacam lists an average fast-charge time of approximately 4.5 hours and approximately 13.5 hours using normal 5V/2A charging, although actual charging time can vary with the power source.

Warranty

Includes a 1-year limited manufacturer warranty. Eligible product failures are handled according to Tactacam's current warranty terms.
