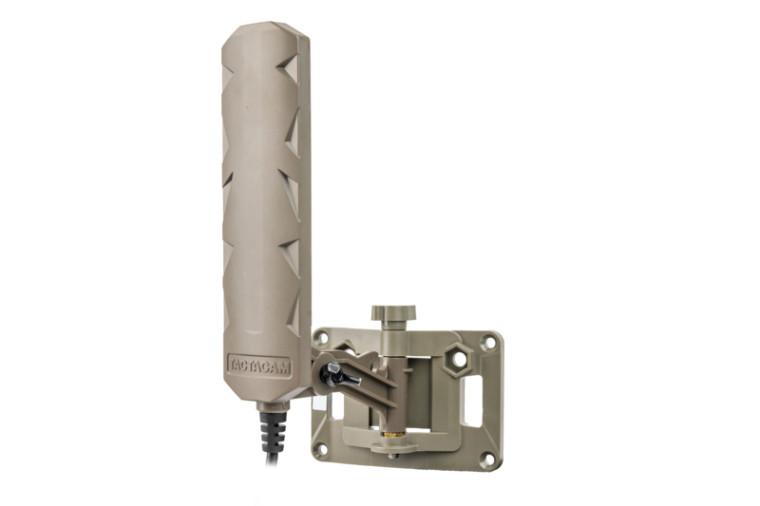

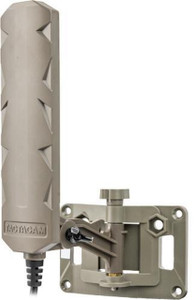

Tactacam Extended Range Antenna 3.0

Product Description
The Tactacam Extended Range Antenna 3.0 is a performance upgrade designed for REVEAL cellular trail cameras operating in low or marginal signal areas. With a long cable, mounting accessories, and outdoor‑rated build, it lets you raise the antenna well above the camera to optimize reception, reduce missed data uploads, and extend battery life. Ideal for hunters and wildlife monitors who need reliability in the field.

Specifications

• Brand: Tactacam

• Model Number: EXTR‑V3 (Extended Range Antenna 3.0)

• Compatibility: REVEAL series cellular trail cameras

• Cable Length: ~6 feet (6.0 ft)

• Mounting Options: Tree mount + strap / 1/4‑20 screw bracket

• Kit Includes: Antenna, 6′ coaxial cable, mounting strap, screwdriver for antenna cap removal

• Power: No external power required

• Warranty: 1 year from manufacturer

Features and Benefits

• Positions antenna up to ~6 feet from the camera to avoid obstructions and improve line of sight

• Boosts cellular reception where signal is weak, leading to more consistent uploads and better coverage

• Helps improve battery life by reducing transmission delays caused by poor signal strength

• Durable and weather‑resistant design built for outdoor conditions

• Multiple mounting options allow flexible placement (strap, bracket, tree mount)

• Simple plug‑and‑play setup—minimal tools needed

Usage Instructions

1. Power off the camera before setup.

2. Remove the existing antenna cap if required.

3. Connect the Extended Range Antenna into the dedicated antenna port.

4. Secure the antenna using the strap or a screw‑mount bracket, ideally placing it higher or clear of obstacles.

5. Return the camera to operation and verify improved signal strength via test snapshots or notifications.

Warranty and Legal Information

• Covered by Tactacam’s 1‑year limited warranty for manufacturing defects

• Users must follow local wildlife laws, property rights, and cellular usage regulations

Why Choose the Extended Range Antenna 3.0

• Substantial signal improvements especially in wooded, hilly, or remote locations

• Better data transmission reliability reduces frustration from missed photos/videos

• Energy savings from faster transmissions help gear last longer between check‑ins

• Large‑cable design gives flexibility in positioning to maximize performance
